Display Gateway
Features:
- 10.1” screen displays (optional) real-time monitoring
temperature and alarm information - Can be used as a handheld terminal
- Configurable according to different applications
- Supports Ethernet / Wi-Fi / 4G communication
- 6-Hour Battery backup (Optional)
- Data Logging – 5 years of data
- Main power monitoring and power outage alarm
- Voice alarm for abnormal temperature measurement
& network connection - Supports GPS positioning and trajectory tracking during
transportation - NFC one-click configuration and sensor binding
- Connect Bluetooth printer to print monitoring data
- Auto save monitoring data for data tracking
Gateway Display Specifications | |
Communications: | •2.4GHz LoRa proprietary network •Zigbee Pro •Wi-Fi •4G (Optional) |
Network Interface: | •Dual-band Wi-Fi •4G full network •Ethernet |
Display | •10.1” screen •1280×800 pixels •Capacitive touch screen |
Data Logging | •5 years of data storage |
Working Temperature: | •-20℃ ～ +70℃ |
Battery Voltage & Capacity: | •3.7V / 4000mAH |
Dimensions: | •Gateway with display：25cm x 16cm x 2.2cm / 500g •Gateway without display：12.5cm x 12.5cm x 3cm /350g |
Communication Range: | •Outdoor 200 m •Indoor 100 m |
Extensible functions: | •NFC tag reading |
Mobile App
Features
- Cross-Platform – iOS and Android device compatible
- Seamless Access – Monitor from any smartphone or tablet
- Consistent Experience – Same intuitive UI across platforms
- Dual Metrics – One tap switch between °F / °C or Temp/Humidity
- Real-time Monitoring – Live temperature and humidity readings
- Visual Alerts –
- Color-coded temperature dial (blue/green/yellow/red zones) for quick status checks
- Individual sensor color-dot temperature indicators
- Audible Alerts – Audible alarm when temperature/humidity is out of range
- Push Notifications – To the management team when temperature/humidity is out of range
- Device Management – Rename probes, delete, or manage multiple sensors easily
- Historical Data – Graph and log views for compliance and trend analysis
- Probe Position Tracking – Visual placement confirmation (with images, e.g., “in the frozen food display case”)
- Multi-Device Support – Manage several probes/sensors from one dashboard
- Audit-Ready Logs – Timestamped entries for compliance and inspection needs
- User-Friendly Interface – Clean, intuitive UI for quick training and adoption
- Remote Access – Full monitoring from any mobile device, anytime, anywhere

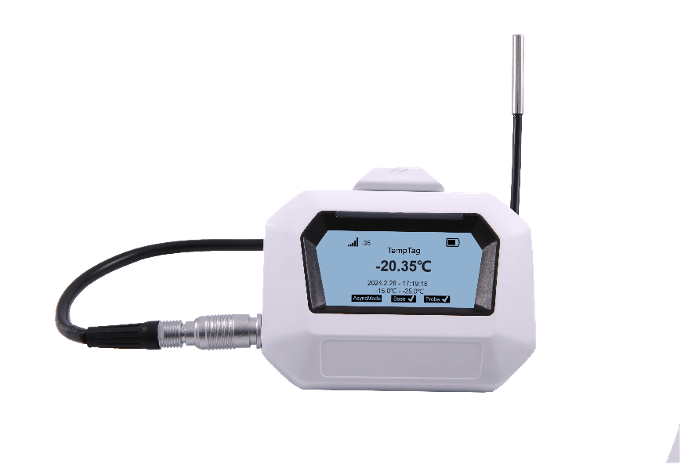

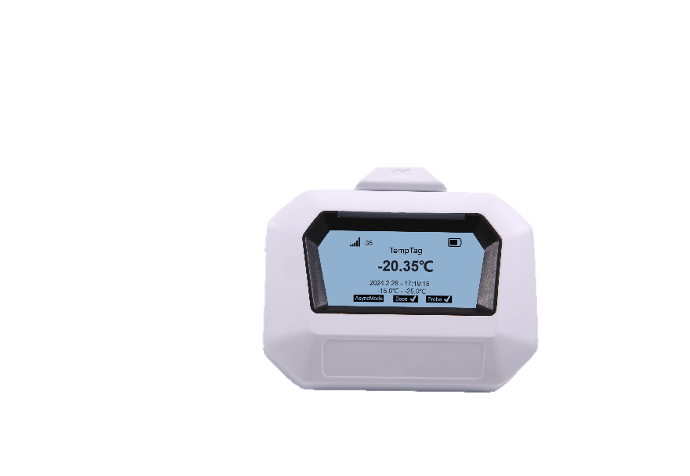

Digital Temperature Sensor
Features:
- Display: Reflective LCD, real-time display of measurement and alarm information
- Auto-save during network interruptions. Stores 100,000 pieces of temperature/humidity data
- Intelligent base supporting seamless device switching
- Supports drop alarm and disassembly alarm
- NFC communication interface for binding and reading data
- Working temperature -40℃~80℃
- Multi-type probe support:
- Built-in sensor (-40℃~80℃)
- Temperature and humidity probe (-40℃~80℃, 0~100%RH)
- External probe (-40℃~105℃)
- External wide temperature probe (-200℃~200℃)
Digital Temperature Sensor Specifications | |
Communications: | 2.4GHz LoRa wireless communication •Outdoor 200 m •Indoor 100 m |
Measurement range & Accuracy: | Temperature: Option 1: -40℃ ~80℃, ±0.5℃ Option 2: -200℃ ~ +200℃, ±0.5℃ |
Data reporting interval: | 10s ~7200s, able to save 100,000 data records |
Battery & capacity: | ER14505 / 2500mAH |
Waterproof rating: | IP67 |
Battery life: | 3 years (Collect and report data every 5 minutes) |
